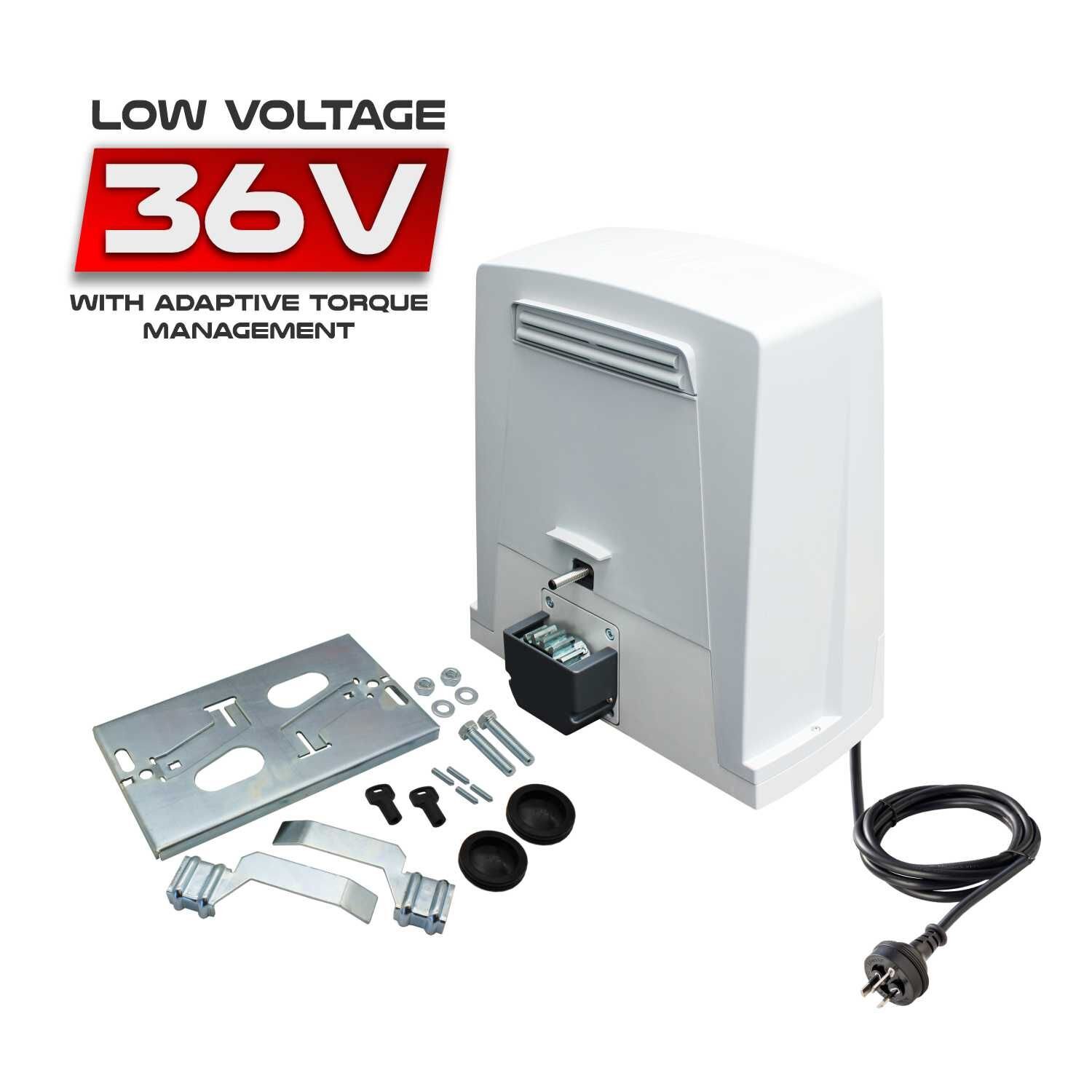

The BKV range is the pinnacle of the sliding gate automation industry. Still low voltage but at the leading power range of 36V this adaptive torque designed sliding gate system is suited for any gate weight, slope, and length.
Suitable for commercial, industrial and Residential Installation of all wights and sizes whether a 20m long commercial gate or a heavy merbau cladded gate at home the BKV makes easy work of it with the ability to run at 100% duty cycle (24HR operation) where required with a maximum capacity of 1500KG weight or a 20 Meter Long Gate.
Still carrying the CAME typical top of the line features such as three stage speed control all adjustable, precise encoder travel DC motor, reliable spring limit system PLUS the option of a plug in weekly timer (no wiring bulky hard to program timers) and all still with the easy to use an intuitive LCD interface
Both 2000KG and 2500KG versions are also available if required for heavier project and custom applications.

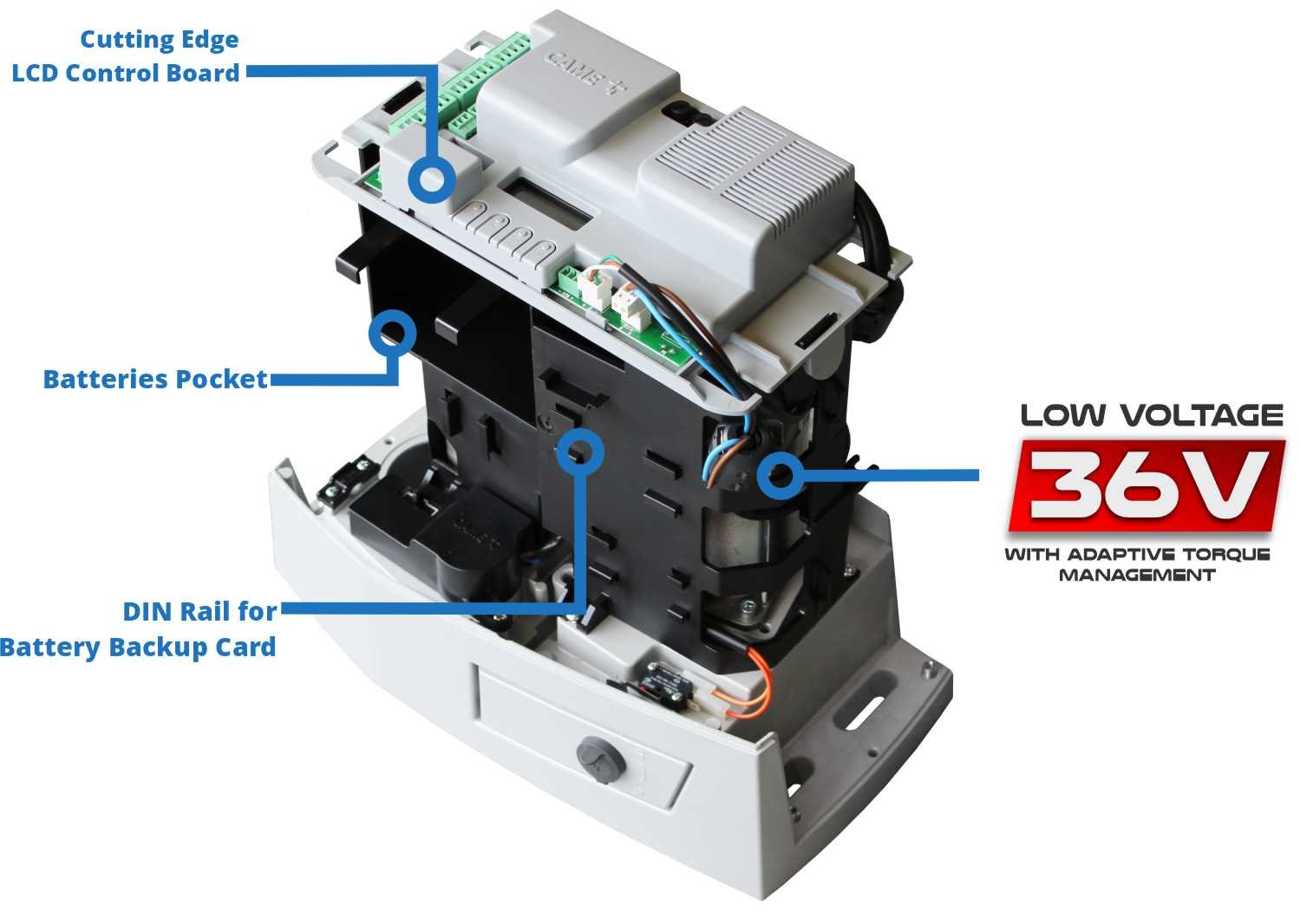

For ease of configuration the cutting edge digital control board with backlit LCD screen is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.
Further key benefits of the BKV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the High speed, low speed and approach points with the ability to have a soft start enabled where required.
The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).

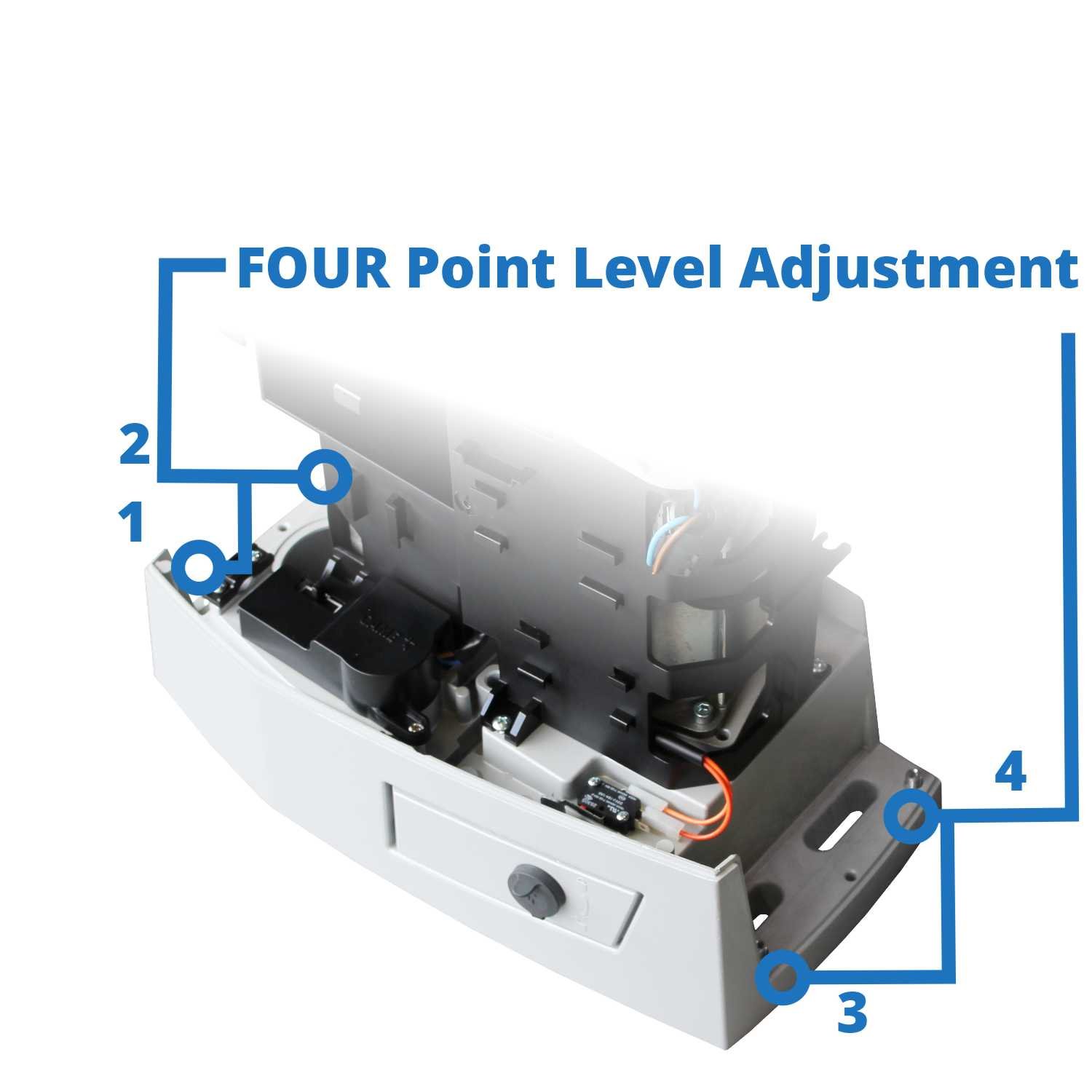

As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BKV.
Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit
Manual Release
Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required an internal battery backup system is available for completely uninterrupted operation. The system is completely housed within the unit and allows for continued use at a 24V level.
The BKV range is the pinnacle of the sliding gate automation industry. Still low voltage but at the leading power range of 36V this adaptive torque designed sliding gate system is suited for any gate weight, slope, and length.
Suitable for commercial, industrial and Residential Installation of all wights and sizes whether a 20m long commercial gate or a heavy merbau cladded gate at home the BKV makes easy work of it with the ability to run at 100% duty cycle (24HR operation) where required with a maximum capacity of 1500KG weight or a 20 Meter Long Gate.
Still carrying the CAME typical top of the line features such as three stage speed control all adjustable, precise encoder travel DC motor, reliable spring limit system PLUS the option of a plug in weekly timer (no wiring bulky hard to program timers) and all still with the easy to use an intuitive LCD interface
Both 2000KG and 2500KG versions are also available if required for heavier project and custom applications.
For ease of configuration the cutting edge digital control board with backlit LCD screen is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.
Further key benefits of the BKV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the High speed, low speed and approach points with the ability to have a soft start enabled where required.
The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits).
As is often the case concreting is never perfect and is more apparent once a motor is installed, this is remedied by the FOUR point adjustment system of the BKV.
Simply adjust each corner of the motor chassis up/down to return the unit to level in both directions. This will allow for easy gear rack installation to the gate since alignment is set to suit
Manual Release
Easy to use manual release incase of power outage. Insert the supplied key and turn to unlock the manual release lever. To release turn the manual release lever and now the gate can be opened and closed manually. If required an internal battery backup system is available for completely uninterrupted operation. The system is completely housed within the unit and allows for continued use at a 24V level.
