The BXV 600 ULTRA FAST is designed to suit a variety of different applications from typical sliding gates in a domestic home up to extra long 14m length gates in a commercial environment, all this with a 600KG weight capacity. 400KG and 600KG standard versions are also available.
With top of the line features like 3 stage speed control, precise encond the reliable spring limit system longevity is the basis of design.
All-in-One and Feature Packed

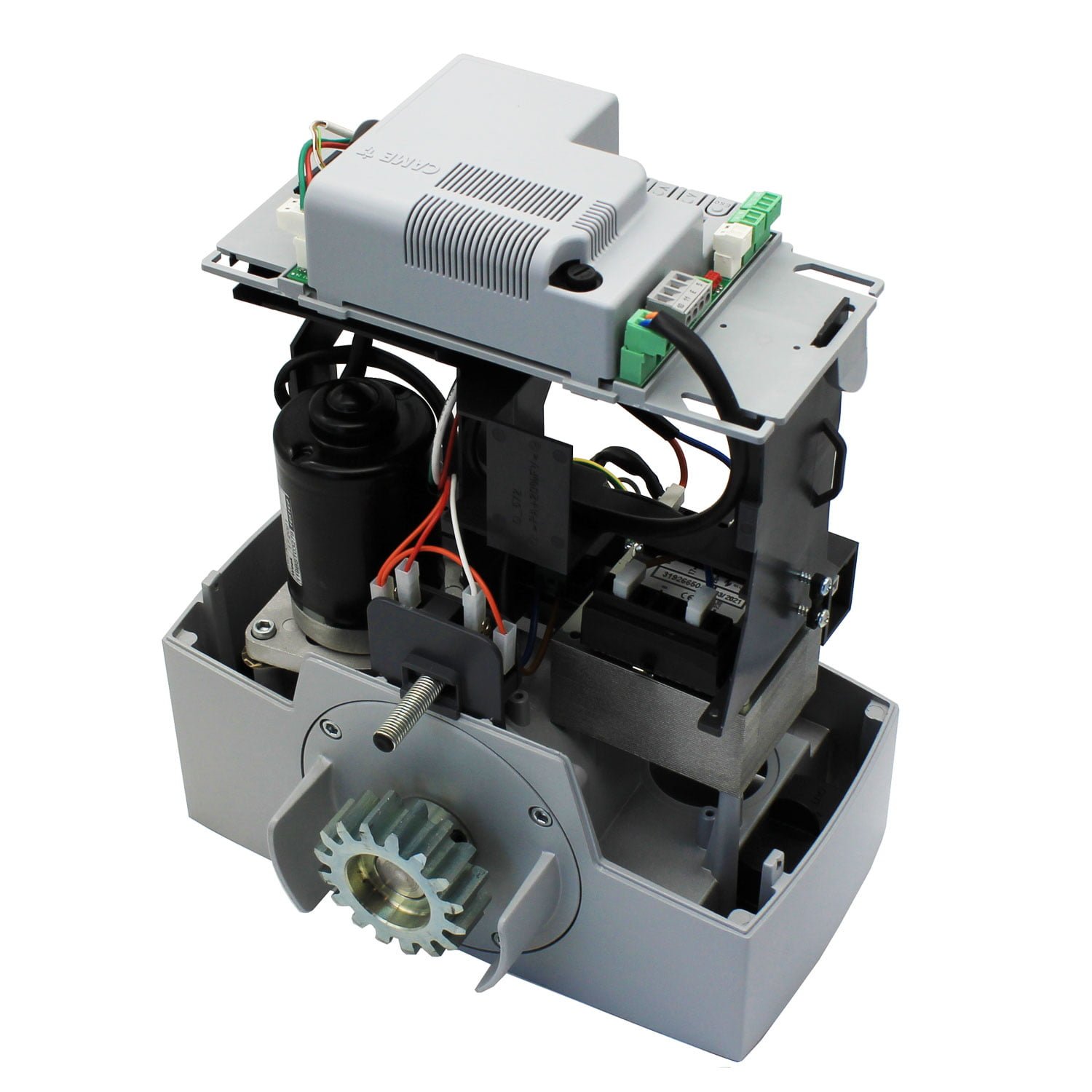

For ease of configuration the cutting edge digital control board is housed at the top of the unit allowing for easy changes to any one of the numerous features of the system.
Further key benefits of the BXV system is the motor is controlled by an encoder giving precise and accurate operation along with its slowdowns, all completely adjustable including the speed and slow points.
The stopping point at each end is controlled by an easy to setup and durable spring limit system not affected by the Australian climate (unlike magnetic limits
By default the control board will be pre-configured for the best typical settings for most users however with the onboard digital display and easy to use scroll buttons the configuration options are almost endless. Out of the box it will be configured for Both Full Gate OPEN/CLOSE + Partial Opening Function (a set amount of the gates travel) in a home you would just enable and set the automatic close timer (if required) and that’s it. However in an installation with a longer driveway you may want to adjust the pedestrian command to be an OPEN ONLY input allowing for the use of a loop detector to be used to detect vehicles approaching the gate and open automatically (and optionally close on the automatic close timer if enabled)
Power Inputs and Outputs
Typical input and outputs to power the system and any wired in accessories
24V Power Input
24V Power Output For Accessories
Configurable Methods Of Operation
Wireless and Wired equipment can be configured in a number of different ways to support the best suited operation for the site, by default the system is configured for typical usage being full gate operation and partial opening
Full Gate Operation
Partial (Opens the gate partially for pedestrian access)
Open Only
Close Only
Motor Specifics
Default configurations are already set however, if required further adjustment can be made to suit all installations
ENCODER Control
Automatic Calibration (with Adjustable Calibration Speed)
Motor Test (used for checking your directions prior to calibration)
Adjustable Thrust
Adjustable Travel Speed
Adjustable Sensitivity
Adjustable Slowdown Speed
Adjustable Slowdown Position
Light Control
Multiple options for visible safety alerts, illuminating the driveway OR Both
Flashing/Static Illuminated Light from OPEN til CLOSED
Additional Output for Flashing During Opening
Plenty of support to protect occupants, visitors and there vehicles
Supports Photocell Sensors
Supports Reflective Sensors
Supports Safety Edge
Supports Induction Loops for Safety
Supports STOP Button
Supports Maintained Action (Hold to OPEN/CLOSE)
Operational Control
Infinite support for accessories and methods of operation
Remote Control
Wireless Keypads
Wired Keypads
Wired Button
Induction Loops
Intercom Systems
